HDD Roller Cone Hole Opener for Hard Rock Drilling

Hole openers – Roller Cutter Hole Opener

Category:

Description





Roller Cutter Hole Openers — LTO-MT/TCI Series

High-Capacity Reaming Tools with Multi-Cone Configurations (16″ to 64″) for Foundation Drilling & Pipeline Trenchless Operations

Category: Hole Openers
Series: LTO-MT/TCI
Reaming Size Range: 16″ – 64″
Cone Count: 3 to 12 PCS
GET A QUOTE

Key Performance Advantages for Hole Expansion:

  • Scalable Multi-Cone Design: Features cutter counts scaling from 3 PCS up to 12 PCS to ensure balanced load distribution and rapid reaming rates across diameters up to 64″.
  • Robust Shaft & Thread Integrity: Built with high-strength shaft outer diameters (168mm to 228mm) and reliable API thread connections (410-411, 620-621) to handle severe torsional loads.
  • Customizable Specifications: Fully adaptable body structures and cone models (utilizing 9 1/2″ and 12 1/4″ roller cone variants) tailored precisely to customer geological needs.

Product Overview & Technical Description

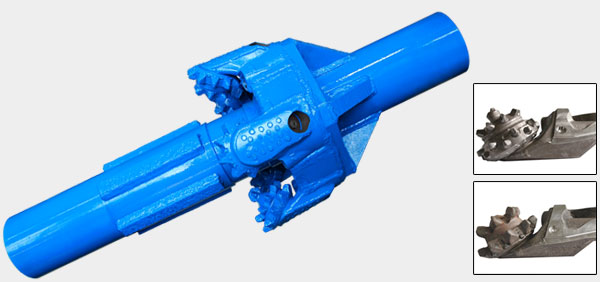

The Roller Cutter Hole Opener (LTO-MT/TCI Series) is engineered for heavy-duty wellbore enlargement, HDD (Horizontal Directional Drilling) backreaming, and large-diameter shaft sinking. Designed with multiple high-durability roller cones arranged symmetrically around a robust body mandrel, these hole openers efficiently crush and fracture hard formations.

Ranging from 16 inches to 64 inches in reaming size, the series integrates heavy-gauge cutter options (`9 1/2LR517G` and `12 1/4LR517G`) and high-performance bearing structures. Custom hole opener specifications can also be manufactured directly according to specific project requirements.

Technical Specifications — LTO-MT/TCI Series

Roller Cutter Hole Opener LTO-MT/TCI Series Specification Table
GET A QUOTE

Field Problems Solved by LTO-MT/TCI Hole Openers

1. Problem: Excessive Vibration During Large-Hole Expansion

Solution: Symmetrically balanced multi-cone arrays (up to 12 cutters) distribute crushing forces evenly, eliminating severe tool chatter and directional drift.

2. Problem: Premature Bearing Failure Under High Thrust Loads

Solution: Heavy-duty shaft ODs (up to 228mm) and premium sealed bearing assemblies in the roller cones support high weight-on-bit requirements.

3. Problem: Inability to Match Non-Standard Hole Diameters

Solution: Factory custom manufacturing accommodates non-standard reaming dimensions according to specific project engineering parameters.

4. Problem: Difficult Maintenance and Component Replacement

Solution: Modular cutter pocket designs allow individual roller cones to be swapped out quickly in the field, minimizing downtime.

Frequently Asked Questions (FAQ)

Q: Can hole openers be produced with custom connection threads or dimensions?
A: Yes, according to customer requirements, hole openers of different specifications, shaft diameters, and connection threads can be custom manufactured.
Q: How is the number of roller cutters determined for larger reaming sizes?
A: The cone count scales with hole diameter—from 3 cutters for 16″-18″ holes up to 12 cutters for 60″-64″ holes—ensuring optimal cutter coverage and crushing efficiency across the entire borehole face.
Q: What types of roller cones are used in this series?
A: The series primarily uses high-performance tungsten carbide insert (TCI) roller cones, specifically utilizing 9 1/2LR517G for smaller models and 12 1/4LR517G for intermediate to large configurations.

Need Custom Technical Specifications or Factory Direct Pricing?

Contact our technical team for engineering support, customized connection options, and bulk factory quotes.

GET A QUOTE
